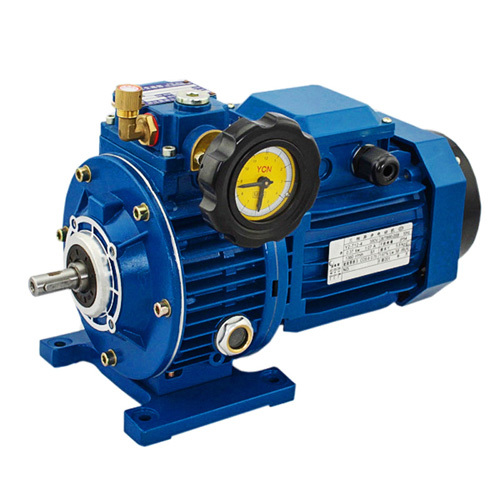

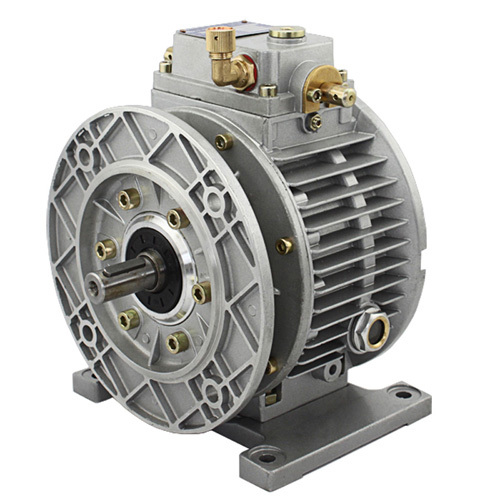

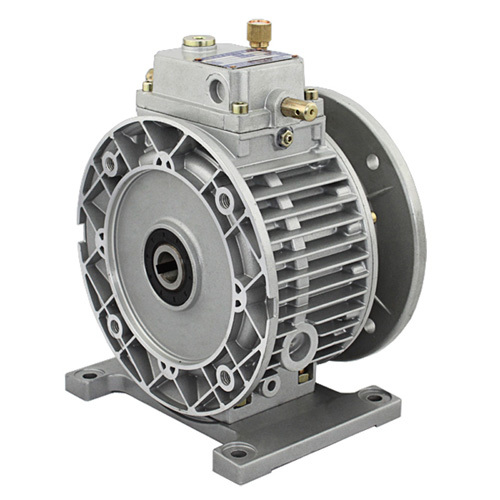

MB(UD) Series Variable Speed Gearbox: Engineered for Performance
Experience the pinnacle of gearbox innovation with the MB(UD) Series, your solution for achieving optimal speed control and operational efficiency in demanding industrial environments.
Key Features & Benefits
features:
1. The MB series inverter is a continuous mechanical inverter designed by the planetary friction transmission principle. Convenient maintenance, simple operation.
2. High-speed regulation precision, stable performance, and wide speed variation range, can be combined with other series gearboxes.
3. The products have been mainly used in machinery fields such as printing and packaging, food and beverage, pharmaceutical chemicals, leather, shoes, etc.
Benefits:
1.Wide Speed Range with High Precision
Our gearbox offers a broad speed variation range, ensuring precise control for your specific application needs, from printing and packaging to food processing and beyond.
2.Robust Design for Maximum Durability
Constructed with the highest quality materials, the MB(UD) Series is built to withstand the toughest conditions, ensuring long-lasting performance and minimal maintenance.
3.Versatile Installation Options
Whether you need horizontal or vertical installation, our gearbox adapts to your space requirements, providing flexibility and ease of integration into your existing systems.
Specifications at a Glance
- Basic type output speed: 4P:200~1000rpm, 6P:130~650rpm.
- Output torque: up to 350N.M
- Motor power: 0.12~7.5kw
- Installation way: horizontal or vertical.
Type and specification:
MB(C)02,MB(C)04,MB(C)07,MB(C)15,MB(C)22,MB(C)40,MB55,MB75
Quick selection:
Basic model
Model
|
MB(N)02
|
MB(N)04
|
MB(N)07
|
MB15
|
MB22
|
MB40
|
MB55
|
MB75
|
4P Input power
(kW)
|
0.12
|
0.18
|
0.25
|
0.37
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
3
|
4
|
5.5
|
7.5
|
6P Input power
(kW)
|
|
|
0.18
|
0.25
|
0.37
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
3
|
4
|
5.5
|
Permitted Torque
(Nm)
|
1-2
|
1.5-3
|
2-4
|
3-6
|
5-10
|
6-12
|
9-18
|
12-24
|
18-36
|
24-48
|
32-64
|
45-90
|
59-118
|
Output speed
(rpm)
|
When motor speed(4P)= 1400rpm: output speed=1000-200rpm
|
When motor speed(6P)= 960rpm: output speed = 650-130rpm
|
Weight (Kgs)
|
10
|
13
|
17
|
35
|
65
|
110
|
110
|
Note: the weight is for the main model, without oil and motor.

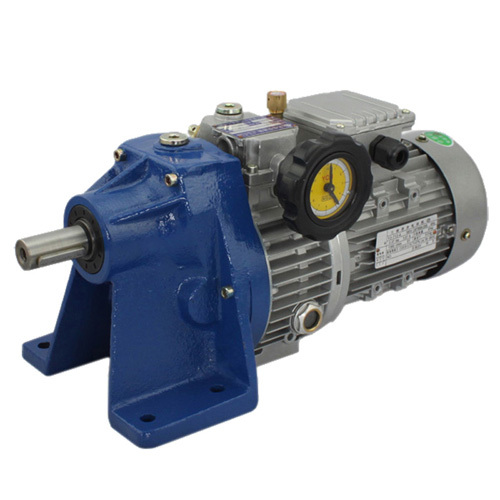

Single-stage gear drive model
Model
|
MB02-C
|
MB04-C
|
MB07-C
|
MB15-C
|
MB22-C
|
MB40-C
|
MB55-C
|
MB75-C
|
4P Input power
(kW)
|
0.12
|
0.18
|
0.25
|
0.37
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
3
|
4
|
5.5
|
7.5
|
6P Input power
(kW)
|
|
|
0.18
|
0.25
|
0.37
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
3
|
4
|
5.5
|
Ratio
|
Motor poles
|
Output speed
(rpm)
|
Permitted Torque (Nm)
|
1.5
|
4P
|
665-133
|
1.4-2.8
|
2.1-4.2
|
2.8-5.6
|
4.2-8.4
|
7.0-14
|
8.5-17
|
12.5-25
|
17-34
|
25.5-51
|
34-68
|
45.4-91
|
64-128
|
84-168
|
6P
|
430-86
|
2.5
|
4P
|
400-80
|
2.35-4.7
|
3.55-7.1
|
4.75-9.5
|
7.1-14.2
|
11.8-23.6
|
14.2-28.4
|
21.3-42.6
|
28.5-57
|
42.5-85
|
57-114
|
76-152
|
106-212
|
140-280
|
6P
|
260-52
|
3.3
|
4P
|
300-60
|
3.3-6.6
|
4.75-9.5
|
6.2-12.4
|
9.5-19
|
15.5-31
|
19-38
|
28-56
|
37.5-75
|
56.5-113
|
75-150
|
99.5-199
|
140-280
|
184-368
|
6P
|
200-40
|
5
|
4P
|
200-40
|
4.75-9.5
|
7.1-9.5
|
9.5-19
|
14.2-24.8
|
23.5-47
|
28.5-57
|
42.5-85
|
57-114
|
85.5-171
|
114-228
|
152-304
|
213-426
|
280-560
|
6P
|
130-26
|
Weight (Kgs)
|
16
|
17
|
23
|
40
|
75
|
125
|
125
|
Note: the weight is for the main model, without oil and engine
Use Scenarios
Automation Line Engineers Adjusting Conveyor Speeds
Engineers responsible for conveying systems often need to modify transport speed to match upstream and downstream machine cycles. This variator gearbox enables fine control without electrical programming, providing predictable mechanical adjustment that maintains stable torque. It aligns easily with systems built using parts from planetary gearbox manufacturers or gear reducers manufacturers, ensuring consistent throughput and reliable synchronization across the line.
Equipment Integrators Building Modular Packaging Machines
Packaging-machine integrators frequently require a mechanism to alter feeding or sealing speed as materials change. The variator gearbox fits into modular machine frames and supports both light and medium-duty work. Its smooth response helps prevent tearing, misalignment, or product jams. For integrators sourcing components from custom gearb-ox suppliers or worm gear manufacturers, the gearbox provides a practical mechanical speed-tuning interface that enhances system adaptability.
Mechanical Consultants Designing Flexible Production Systems
Consultants advising on scalable or multi-purpose production setups use this gearbox as a simple method to enable variable output without relying on electronic drives. It works effectively in textile, woodworking, labeling, and lifting equipment where manual or semi-automatic adjustment is required. When paired with units from industrial gearbox manufacturers, the variator provides reliable modulation for clients seeking durable and low-complexity motion-control solutions.
