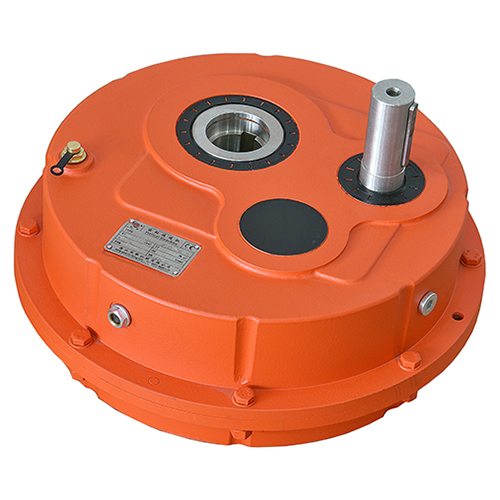

Name: XGC series shaft mounted helical gearbox
Brand: SL-Transmission China geared motor
SKU: XGC series
Availability: InStock
Rating: 5 (1 reviews)

Description

Product features:
(1)    Completely uses low-carbon alloyed steel through carburizing treatment
(2)    High precision for the gear and the gear shaft
(3)    Small volume and large torque

Main Parameter:
Output speed: 16.4~280rpm
Output torque: 137~17000Nm
Motor power: 0.8~226kw

Fast selection:

Model	Power(kW)	Ratio	Permitted Torque (Nm)
Model	Power(kW)	Ratio	Permitted Torque (Nm)
XGC30	0.8~2.9	7.0~12.5	180
XGC35	0.9~6.0	5~25	420
XGC40	1.7~14.4	5~30.5	950
XGC45	2.5~26	5~30.5	1400
XGC50	4.2~42	5~30.5	2300
XGC60	6.5~57	5~30.5	3600
XGC70	9.2~78	5~30.5	5100
XGC80	12.3~111	5~30.5	7000
XGC100	19.7~165	5~30.5	11000
XGC125	30~226	5~30.5	17000

Heat-Treated Alloy Steel And Precision Machining
The XGC series shaft mounted helical gearbox is manufactured using low-carbon alloy steel subjected to carburizing treatment. This heat treatment ensures surface hardness and wear resistance, extending gear life under heavy duty cycles. Precision machining is applied to both the gear and the gear shaft, securing alignment and reducing backlash. The result is stable torque transmission with minimal mechanical loss. The material choice and processing standard align with industrial requirements for long-term durability. Such structural reliability supports engineering fields where gearbox reducer systems must operate continuously under variable load. By using high precision gear engagement, the XGC gearbox provides consistent output performance, reinforcing its value for operators and equipment builders sourcing from trusted industrial gearbox manufacturers.

Wide Range Of Power, Torque And Speed Options
The XGC series covers a broad operational spectrum. Output speed ranges from 16.4 to 280 rpm across models. Torque spans from 137 Nm at the smallest unit to 17000 Nm at the largest. Motor power compatibility ranges between 0.8 kW and 226 kW, making the series scalable from light duty through heavy machinery applications. Standard ratios extend from 5 to 30.5 depending on unit selection. Model designations such as XGC30, XGC60, or XGC125 specify permitted torque and input power capacities, enabling precise configuration for target systems. This flexibility allows the gearbox to adapt easily to multiple machine setups requiring high efficiency gear reduction box assemblies or heavy-duty reducer gearbox solutions without the need for redesign.

Compact Dimensions With High Torque Output
Despite the capacity for large torque, the XGC maintains a relatively small physical volume, contributing to more efficient use of installation space. The shaft mounted design eliminates the need for couplings in many layouts, reducing mechanical complexity. The gearbox can be directly attached to driven shafts, improving alignment and saving assembly time. Weight differs by model, from small 2.2 kg designs to large units exceeding 300 kg. Regardless of size, the compact design ensures strong torque output, offering a combination of small volume and large torque delivery. These characteristics enable replacement of outdated worm gear box drives with a stronger, space-saving gear box motor arrangement suited for modern systems.

Product Advantages

Carburized Steel Ensuring Long Service Life
The adoption of carburizing treatment on low-carbon alloy steel guarantees hardened surface layers while maintaining tough core strength. This dual property extends wear life and withstands torque fluctuations. Compared to untreated materials, the hardened gears reduce pitting and surface fatigue. This directly enhances reliability in systems demanding sustained torque output. Such durability is key for companies seeking gear reducer products from reliable industrial gearbox manufacturers, ensuring lower long-term maintenance costs and minimized downtime.

Torque Flexibility Across Multiple Models
The XGC series covers torque levels from 137 Nm to 17000 Nm, allowing one product line to serve both small-scale and heavy-load applications. Users can select from XGC30 up to XGC125, each defined by motor power compatibility and permitted torque. This wide span of torque options makes the series adaptable to diverse industry needs without changing the overall product design. For manufacturers standardizing across platforms, the range simplifies procurement and integration of reducer gearbox components. It also supports scaling up production while maintaining mechanical consistency across machines.

Shaft Mounted Design Saving Space And Time
By mounting directly onto the driven shaft, the gearbox reduces the need for separate foundations or additional couplings. This saves both installation time and physical space, particularly valuable in equipment with limited room. Shaft mounting also improves torque transfer by reducing misalignment risk. The compact approach is especially attractive to industries converting from larger worm gearbox units. Operators benefit from reduced assembly labor, better load transmission, and the efficiency gains of simplified system layouts compared to more traditional gear box parts arrangements.

Use Scenarios

Bulk Material Conveying Systems
Conveyor applications in industries such as mining, ports, and construction demand consistent, heavy-load torque transmission. XGC shaft mounted gearboxes provide stable drive with ratios up to 30.5, ensuring efficient speed reduction. Mounted directly on the conveyor shaft, the gearbox reduces auxiliary component requirements. This makes it a robust alternative to older worm drive gearbox installations, providing higher torque density and improved service life under continuous operation.

Heavy Industrial Processing Equipment
Machinery in cement plants, steel mills, and wood processing often require compact but powerful drive units. The XGC series suits this environment with its hardened gears, torque range up to 17000 Nm, and scalable motor compatibility. Its reliability supports continuous duty operation in high-dust or vibration-intensive settings. Replacing traditional gear box motor systems, the XGC improves mechanical efficiency and prolongs operational lifespan, ensuring lower maintenance frequency and consistent process stability.

Compact Power Transmission For Mechanical Drives
For equipment where space is limited, such as pumps, mixers, or compact construction tools, the XGC gearbox delivers significant torque without demanding large installation areas. Its shaft mounted design simplifies system architecture by integrating directly with the drive shaft. Compared to larger worm gear reducer units, it offers improved power density and smaller footprint. This ensures smooth integration into mechanical systems where space saving and efficient torque delivery are priorities.

About Us

SLM was founded in 1988 and has grown into a specialized manufacturer of gear motors, gearboxes, and reducers serving global industries. With decades of experience, the company is a senior member of the China Speed Reducer Industry Association and the China Committee of Gear. Operations are guided by ISO9001:2008 quality standards. The company maintains advanced production capability including gear grinding equipment, CNC machining centers, and inspection systems for precision assurance. Annual output reaches approximately 100,000 sets distributed internationally across Europe, Southeast Asia, and the Americas.

SLM product lines cover helical gearmotors, worm gearboxes, planetary gear reducers, variators, cycloidal gear units, and customized modular drive systems. These products serve markets in metallurgy, mining, cement, energy, packaging, chemical, and textile sectors. As one of the recognized planetary gearbox manufacturers and gear reducers manufacturers, SLM emphasizes research, production, and testing capabilities to meet diverse application needs while supporting OEM customization for clients worldwide.

FAQ

What materials are used to manufacture the gears in the XGC shaft mounted gearbox?
The gears and shafts are produced from low-carbon alloy steel and undergo carburizing treatment, ensuring high precision, hardened surfaces, and extended service life for gear reducer systems.

What is the operational range of torque and motor power supported by the XGC series?
The series covers torque output from 137 Nm to 17000 Nm and motor power compatibility from 0.8 kW to 226 kW, meeting requirements across small, medium, and heavy reducer gearbox installations.

What is the speed range available for the XGC shaft mounted gearbox?
Output speeds vary between 16.4 rpm and 280 rpm depending on ratio and model, making the series suitable for diverse machinery needing reliable gearbox reducer performance.

How does the shaft mounted design benefit installation and operation?
By eliminating the need for couplings or separate bases, the shaft mounted configuration simplifies alignment, saves space, and reduces assembly time, providing clear benefits compared to bulkier worm gear box solutions.

Which industries most often adopt the XGC shaft mounted gearbox?
It is widely applied in conveyors, mining machinery, cement processing, wood machinery, and industrial equipment requiring compact size with high torque, aligning with demands from professional industrial gearbox manufacturers.

Request a quote for your XGC shaft mounted gearbox today and optimize torque performance for your industrial drive system!
